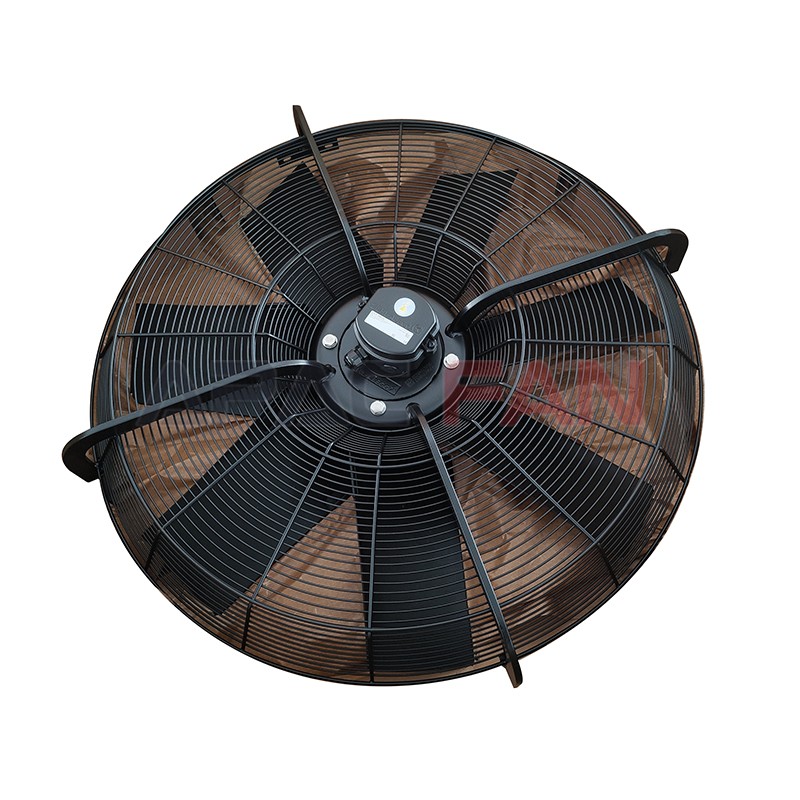

FC091-SDI.7Q.V7 161259 ZIEHL-ABEGG Air Conditioning

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

Brand：ZIEHL-ABEGG
Part No：FC091-SDI.7Q.V7 161259
Fan Type：Axial Fan
Rated Voltage(V)：3~415
Size(mm)：910
Max.Air Flow(m³/h)：38000
Max.Pressure(Pa)：230
Input Power(W)：3600
Speed(rpm)：890

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

FC091-SDI.7Q.V7 161259

Fan Type：

Axial Fan

Rated Voltage(V)：

415

Size(mm)：

910

Max.Air Flow(m³/h)：

38000

Max.Pressure(Pa)：

230

Input Power(W)：

3600

Speed(rpm)：

890

Noise(db)：

Description

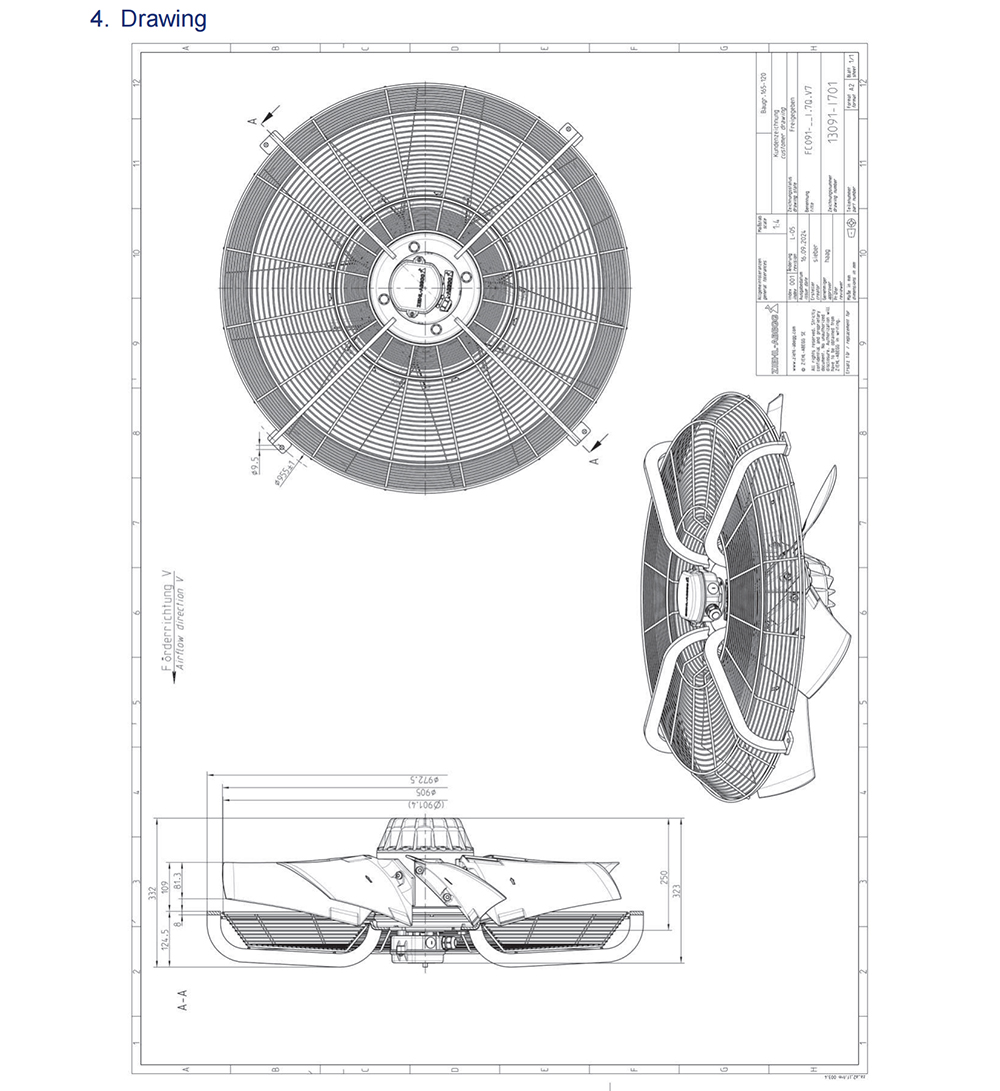

FC091-SDI.7Q.V7 161259 Ziehl-abegg Specification drawing：
